さて、本日は昨日の続きです。
って言っても、たいしたことじゃないです。長いだけ。


====================================================
◎システム名　「演習-学生名簿」
====================================================
～現在ある内容～
・グループ分け　　　　　　←終了
・学年別　　←簡単１      ←終了
・学校別　　　　　　　　　←終了
・性別ごと　←簡単２　　　←終了
・配役配置　　　　　　　　←終了
・試合　　　　　　　　　　←終了
・検索
・選抜　　　　　　　　　　←終了
・動き
・条件別グループ分け

本日は「動き」の続きをおしゃべりします。

９．動き
○やりたいこと
これは番外のお遊びソースですね。
学生名簿演習には正直直接関係はありません。
遊び道具を作りたい方は、って感じでしょうか＾＾；

ではスタート。

○ソース
～～～～～～～ソース３．-ここから～～～～～～～～
'=======================================================
'動作-文字タイプ
'=======================================================
Sub MojiType()
[1]
  SheetSet
  WH13.Range("X1:BG50").Interior.Pattern = xlPatternNone

  LG = 2   '塗りつぶし用-行
  LR = 25  '塗りつぶし用-列

[2]

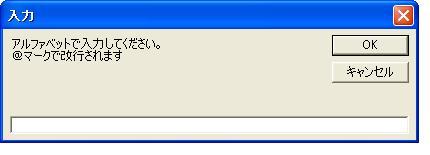

  Kotoba2 = InputBox(Title:="入力", prompt:="アルファベットで入力してください。" & _
            Chr(10) & Chr(13) & "＠マークで改行されます")
  If Kotoba2 = "" Then
    Exit Sub
  End If

[3]
  Ren = Len(Kotoba2)
  j = 1  'Kotoba2を回す用
  Do Until j > Ren
    Kotoba = Mid(Kotoba2, j, 1)
    If Kotoba = "@" Then
      LR = 25
      LG = LG + 8
    Else
      Alphabet
      If LR >= 50 Then
        LR = 25
        LG = LG + 8
      Else
        LR = LR + 2
      End If
    End If
    j = j + 1
  Loop
End Sub
～～～～～～～ソース３．-ここまで～～～～～～～～

ソース３でやってること→アニメーション２、文字タイプ
△これはインプットボックスに入力した値がExcel上に記述されていくソースです。
　ただし動作するのは英大文字のみとなっています。
　小文字で入れても大文字で入れても全部大文字です
　
[1]初期動作→塗りつぶしをなくしたり変数の値を初期値にする
[2]記述したい言葉を入力し、変数Kotoba2に代入。
　何も入力しなかった場合は処理を抜ける

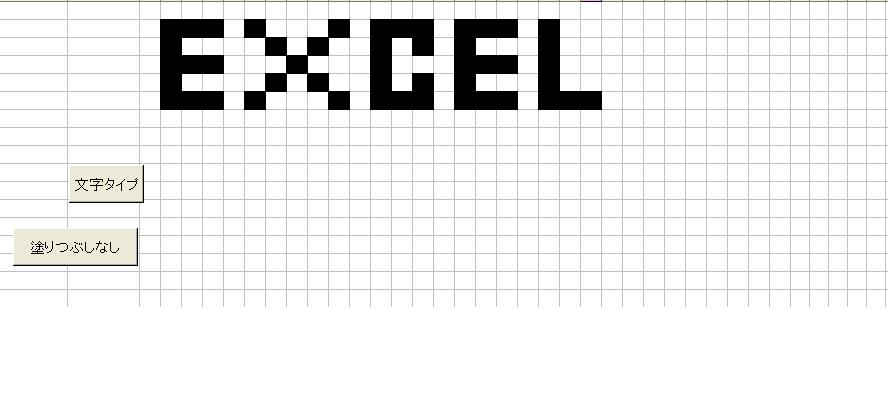

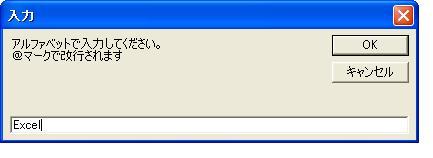

[3]上の処理で「Excel」と入力したのを前提とします。
　1.変数RenにKotoba2の文字数を入れる（今回は５文字）
　2.変数KotobaにKotoba2のｊ番目から1文字分を格納
　3.Kotobaが「＠」の場合は列数のLRを初期値に戻し、現在の行数に８を足す
　「＠」以外の時はマクロ「Alphabet」を呼び出して実行。
　それから列数が50以上の時は列数を初期値に戻し、行数に８を追加。
　列数が50を超えていない場合は列数に２を追加する。

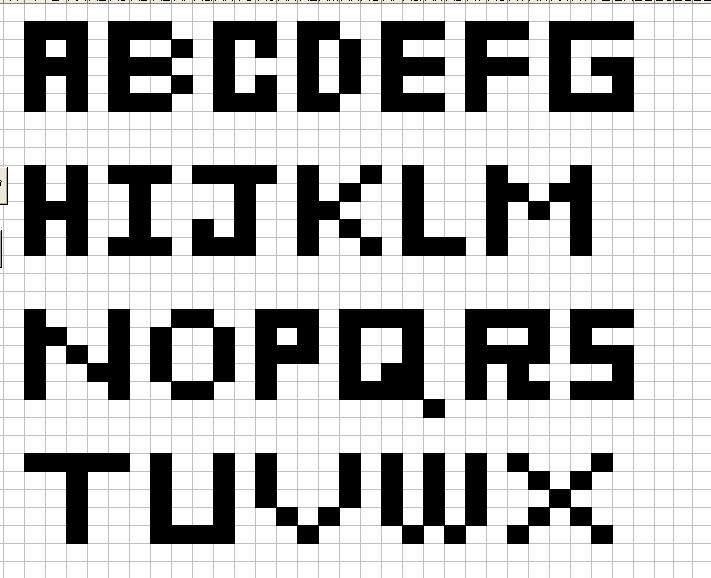

☆　以下に記すのはマクロ「Alphabet」です。長いのでご注意を　☆
～～～～～～～ソース４．-ここから～～～～～～～～
=======================================================
'アルファベットごとに塗りつぶしを変える
'=======================================================
Sub Alphabet()
  Select Case Kotoba
    '◆◇◆　A　◆◇◆
    Case "A", "a"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


    '◆◇◆　B　◆◇◆
    Case "B", "b"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 1, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 3, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h


    '◆◇◆　C　◆◇◆
    Case "C", "c"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      WH13.Cells(LG + 2, LR).Interior.Pattern = xlPatternNone


    '◆◇◆　D　◆◇◆
    Case "D", "d"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG + 1
      Do Until i > LG + 3
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


    '◆◇◆　E　◆◇◆
    Case "E", "e"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h


    '◆◇◆　F　◆◇◆
    Case "F", "f"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h


    '◆◇◆　G　◆◇◆
    Case "G", "g"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        If i <> LG + 1 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop


    '◆◇◆　H　◆◇◆
    Case "H", "h"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop

    '◆◇◆　I　◆◇◆
    Case "I", "i"
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓３列目
      LR = LR + 1
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

    '◆◇◆　J　◆◇◆
    Case "J", "j"
      i = LG
      Do Until i > LG + 4
        If i <> LG + 1 And i <> LG + 2 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓４列目
      LR = LR + 1
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

    '◆◇◆　K　◆◇◆
    Case "K", "k"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      WH13.Cells(LG + 1, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      WH13.Cells(LG + 3, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

    '◆◇◆　L　◆◇◆
    Case "L", "l"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h


    '◆◇◆　M　◆◇◆
    Case "M", "m"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 1, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1
      WH13.Cells(LG + 1, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓５列目
      LR = LR + 1
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


    '◆◇◆　N　◆◇◆
    Case "N", "n"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 1, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1
      WH13.Cells(LG + 3, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓５列目
      LR = LR + 1
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


※ソース4の残りは追記の中に格納しています。

～～～～～～～ソース４．-ここまで～～～～～～～～


'ソース４でやってること→文字タイプ、アルファベットに塗りつぶし
　△長いですがやっているのはその文字になるように1セルずつ
　　塗りつぶしているだけです。
　　今回は徐々に描かれるようにしているので
　　「For h = 1 To 10000
        DoEvents
      Next h」
　　が、入ります。これがないと一気に塗られます。

　※うまく入りきらなかったものがやけに広くなったり大きくなったり
　　していますので、もしこのプログラムを実行なさった方がいらっしゃり、
　　「なんか違和感ある」と思われたらどうぞ改変なさってください。
　　そして若槻に教えてくだｓ（ｒｙ



～～～～～～～ソース５．-ここから～～～～～～～～
'=======================================================
'塗りつぶし無しにする
'=======================================================
Sub NothingColor()
  SheetSet
  WH13.Cells.Interior.Pattern = xlPatternNone
End Sub
～～～～～～～ソース５．-ここまで～～～～～～～～

ソース５でやってること→シート「動き」の塗りつぶしを全て無しにする



以上で「動き」は終了です。
お疲れ様でした。





    '◆◇◆　O　◆◇◆
    Case "O", "o"
      i = LG + 1
      Do Until i > LG + 3
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      i = LG + 1
      Do Until i > LG + 3
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


    '◆◇◆　P　◆◇◆
    Case "P", "p"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 2
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


    '◆◇◆　Q　◆◇◆
    Case "Q", "q"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1
      i = LG
      Do Until i > LG + 4
        If i <> LG + 1 And i <> LG + 2 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓４列目
      LR = LR + 1
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓５列目
      LR = LR + 1
      WH13.Cells(LG + 5, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h


    '◆◇◆　R　◆◇◆
    Case "R", "r"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h

      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        If i <> LG + 1 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        If i <> LG + 3 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop


    '◆◇◆　S　◆◇◆
    Case "S", "s"
      i = LG
      Do Until i > LG + 4
        If i <> LG + 3 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        If i <> LG + 1 And i <> LG + 3 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        If i <> LG + 1 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop


    '◆◇◆　T　◆◇◆
    Case "T", "t"
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓５列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h


    '◆◇◆　U　◆◇◆
    Case "U", "u"
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


    '◆◇◆　V　◆◇◆
    Case "V", "v"
      i = LG
      Do Until i > LG + 2
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 3, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 3, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓５列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 2
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


    '◆◇◆　W　◆◇◆
    Case "W", "w"
      i = LG
      Do Until i > LG + 3
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 3
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 4, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓５列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 3
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop


     '◆◇◆　X　◆◇◆
    Case "X", "x"
      i = LG
      Do Until i > LG + 4
        If i = LG Or i = LG + 4 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      i = LG + 1
      Do Until i > LG + 3
        If i <> LG + 2 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 2, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      i = LG + 1
      Do Until i > LG + 3
        If i <> LG + 2 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓５列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        If i = LG Or i = LG + 4 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop


     '◆◇◆　Y　◆◇◆
    Case "Y", "y"
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 1, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG + 2
      Do Until i > LG + 4
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG + 1, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓５列目
      LR = LR + 1  '次の列へ
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h


     '◆◇◆　Z　◆◇◆
    Case "Z", "z"
      i = LG
      Do Until i > LG + 5
        If i <> LG + 1 And i <> LG + 2 And i <> LG + 3 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 5
        If i <> LG + 1 And i <> LG + 2 And i <> LG + 4 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 5
        If i <> LG + 1 And i <> LG + 3 And i <> LG + 4 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓４列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 5
        If i <> LG + 2 And i <> LG + 3 And i <> LG + 4 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop


     '◆◇◆　!　◆◇◆
    Case "!"
      i = LG
      Do Until i > LG + 4
        If i <> LG + 3 Then
          WH13.Cells(i, LR + 1).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      LR = LR + 1


     '◆◇◆　?　◆◇◆
    Case "?"
      WH13.Cells(LG, LR).Interior.ColorIndex = 1
      For h = 1 To 10000
        DoEvents
      Next h
      '----------------------------------------↓２列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 4
        If i <> LG + 1 And i <> LG + 3 Then
          WH13.Cells(i, LR).Interior.ColorIndex = 1
          For h = 1 To 10000
            DoEvents
          Next h
        End If
        i = i + 1
      Loop
      '----------------------------------------↓３列目
      LR = LR + 1  '次の列へ
      i = LG
      Do Until i > LG + 2
        WH13.Cells(i, LR).Interior.ColorIndex = 1
        For h = 1 To 10000
          DoEvents
        Next h
        i = i + 1
      Loop
  End Select
